INDUSTRIAL COMPONENT HEATERS

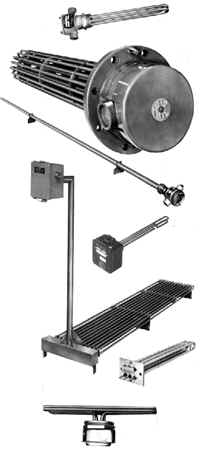

Immersion Heaters
OMEGA
offers a wide variety of heaters for heating gases liquids and soft metals by direct immersion. 24 hour delivery is available on over 260 models; 2-3 week delivery on over 6000 models. Standard units in incoloy copper, steel and stainless. Custom units in 10 different sheath materials.Write for Catalog
Pipe Thread Heaters

·
Used in low KW, low pressure applications
·
18 options available including liquidproof or explosion-resistant outlet boxes and integral thermostats.
·
UL and CSA listed
Pipe Flange Heaters

·
Used in higher KW high pressure/temperature applications
·
Standard sizes up to 12' flanges, custom sizes up to 30".
·
23 options available including high pressure flanges, built-in thermostats, liquidproof or explosion-resistant outlet boxes
Over-the-Side Heaters

·
Used when heater cannot penetrate vessel wall or where heater must be moved frequently.
·
Optional constructions; curved blades for circular openings, deep tank construction and vertical design for minimal interference.
·
13 options available: including built-in thermostat, explosion-resistant outlet boxes, cord and plug.
Cooling Tower Heaters

·
Specially designed pipe thread heaters to prevent water in cooling tower basins or sumps from freezing
·
Over-the-side designs also available.
·
Remote thermostats, contactors, low water cutoff and NEMA 4 panels available.
·
ULlisted
Special Designs

·
Designed for special user and OEM applications.
·
Examples: Pipe insert heaters for viscous fluids, rectangular flange heaters for food processing and many more
Bottom Mounted Heaters

Used in coffee urns, steam tables or any job requiring a low profile. Options; Low water cutoff, liquidproof, explosion resistant outlet boxes.

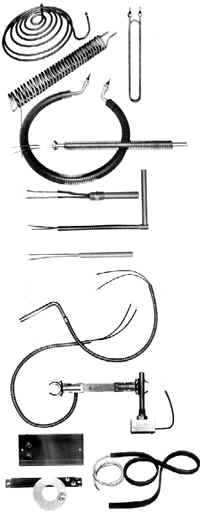

Tubular & Finned Tubular Elements

·
Tubular applications: clamp-on wrap-around, immersion, convection or radiant heating.
·
Finned tubular applications: natural convection or forced draft space heating, industrial process air heating.
·
Custom designs to fit the job.
·
565 designs in stock.
·
10 sheath materials available.
·
Options: 16 different terminations, insulators and seals, special fittings and mounting plates.
Cartridge Heaters

Inserted into drilled holes to heat machine parts, including presses, dies, molds and platens.

·
Sheaths: Incoloy, stainless.
·
Options: special leads, bends, fittings, outlet boxes and ratings.
Crankcase Heaters

·
Used to warm crankcase oil and prevent slugging in refrigeration compressors of leading manufacturers
·
Standard styles: dry well insert, clamp on with mounting clips, immersion.
·
UL and CSA recognized
Strip and Flexible (Silastic) Heaters

Clamped or wrapped around the surface to be heated.

·
String and Ring Heater applications: surface heating for even heat distribution, external tank heating, air heating, moisture/freeze protection, load resistor.
·
Flexible Heater applications: where a low watt density, low temperature, waterproof heater is required (e.g. to prevent condensation in electric motors)
·
Custom designed mica strip heaters to fit the job.
·
Stock flexible heaters up to 48" long.
