Cermaic Heaters

CERAMIC STRIP HEATERS
BLACK STAR
RADIANT STRIP HEATERS

SOME TYPICAL APPLICATIONS
• Thermoforming • Air Heating • Platens • Molds
• Ovens • Sealing • Dies • Tank Heaters • Hot Plates		 SPECIFICATIONS
ELEMENT - Nickel/Chrome Coil
SHEATH - Stainless Steel(Heavy Gauge)
THICKNESS - 1/4"-5/16"-3/8"
TEMPERATURES - Up to 1400 deg.F
WATT DENSITY - Up to 45 watts/square inch
VOLTAGE - Up to 240 volts - Consult factory for higher voltage
TERMINALS - Post Type-Standard 10-24 Thread
LENGTH - Minimum 4" up to any practical length
MOUNTING TABS - Available with or without tabs
MOUNTING SLOTS - 5/16" X 1/2"
4 SIZES AVAILABLE ¼" x 1" 5/16" x 1"
5/16" x 1-1/2" 3/8 x 1-1/2"

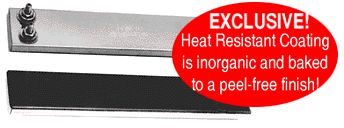

BLACK STAR STRIP HEATERS
 OPTIONS
LEADS - Off top surface or from end
LEADS - in braid or armor

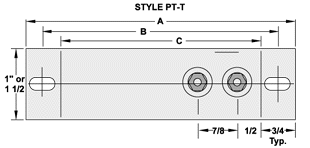

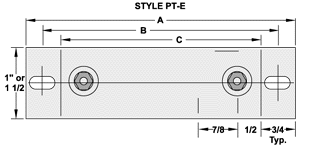

POST TERM - 2 on 1 end - 1 on each end
TERM BOX CERAMIC
TERMINAL COVERS

Others sizes available.
Please consult factory with your requirements. Radiant Panels incorporating these heaters can be customer manufactured. Please consult factory.

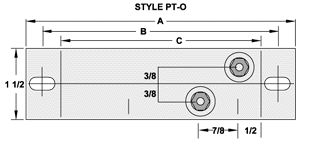

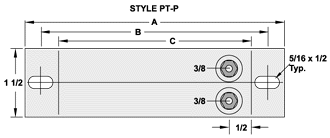

All Heaters Available with Leads Out End, One Each End, or Leads Off Top Surface. Styles PT-P and PT_O Available in 1-1/2" Width Only. Thicknes Tolerance ±.005"

HOW TO ORDER -SPECIFY:
With or without mounting tabs; A-B-C dimensions; 1" width specify 1/4" or 5/16" thick; 1-1/2" width specify 5/16 or 3/8" thick; If post terminal choose style If leads choose location; Add any options required.
